Essential Point
Organizer: JAPAN SPACE ELEVATOR ASSOCIATION

  • Date: 2010.8.7(Sat)`2010.8.8(Sun)
  • Location: 1choume, futawanishi, funabashi City, chiba Pref.
  • Purpose: We challenge whether LEGO can be climbed up to 100 meters.
  • We make LEGO model climb a 25 millimeters nylon tether.
  • We challenge LEGO model climb up to 30 meters on Saturday.
  • We make an attempt on LEGO model climb up to 100 meters on Sunday.
  • Climber made by only LEGO Block.
  • Climber that can climb up and down on its own.

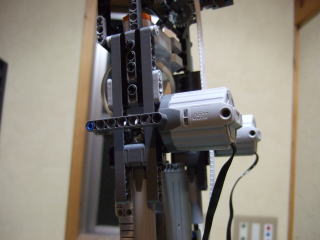

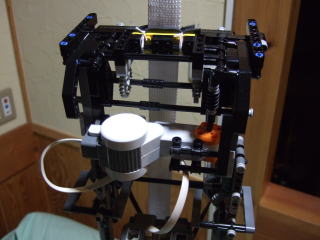

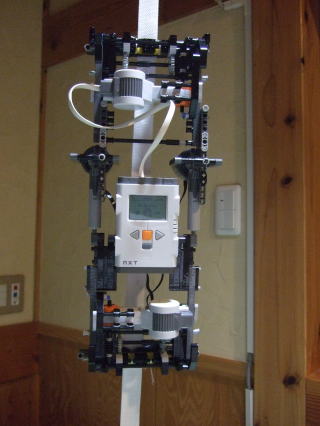

The First prototype
This model move in an 'inchworm' motion.
It is equipped with a Electric Power Functions Linear Actuator to enable it to climb a tether.
This machine takes 6 seconds to go to finish at the most shrunken. This means that It climb only 40mm in 6 seconds.

prototype011

prototype012 prototype013

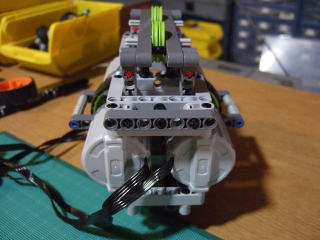

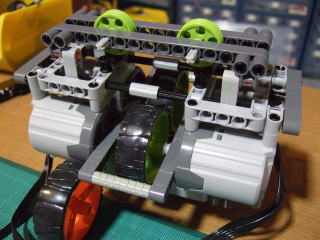

The Second prototype
The climber scale the tether using Power Functions XL motors.

prototype021 prototype022

Four Power Function XL motors are very powerful, but there are too heavy.
When We reduce the number of motors from four to two, It have a good sense of proportion.

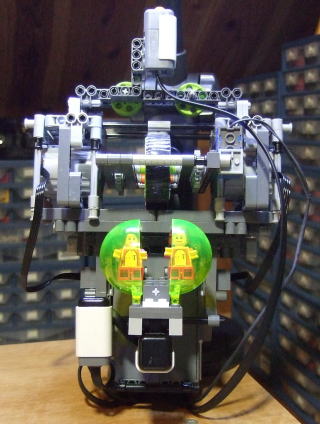

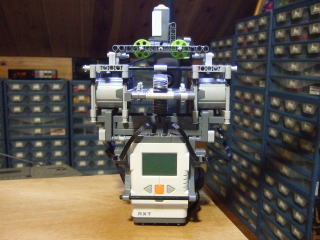

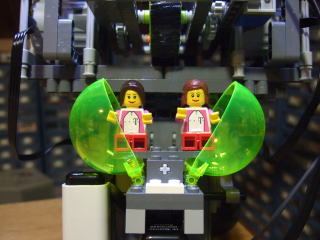

The racing model climber *Elevator girls gou*
This climber got up on to a balloon 30 meters above ground.

Specific

  • Engine: Power Function XL motor (72g x2)
  • Wheel: 41mm Znap Thin Tread
  • Rubber: EPDM Shore A 1 5.9Mpa
  • Battery: Sanyo Ni-MH2700 (Nickel-metal hydride battery)

racing model climber 01

racing model climber 01 racing model climber 01

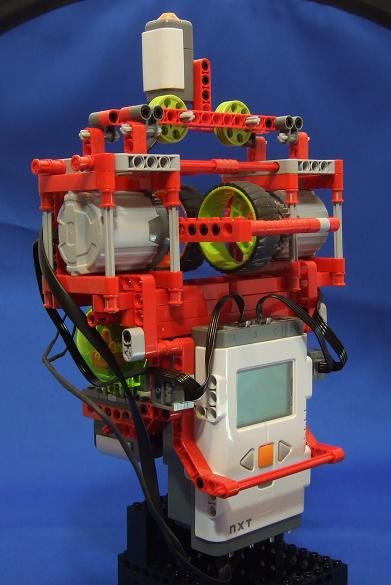

The racing model climber *Elevator girls gou Red Version*
This climber got up on to a balloon 100 meters above ground.

racing model climber red
